#309 — "U" Shaped with Radius and Overlap - 90 degree - 1-1/4” x 1-3/4” I.D. x 1-1/4”

Cut Sheet: Print | Email | Download

Part# 309

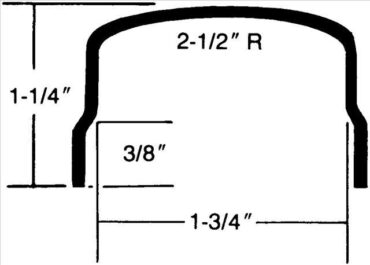

"U" Shaped with Radius and Overlap - 90 degree - 1-1/4” x 1-3/4” I.D. x 1-1/4”

Standard length up to 70". Made to overlap an armor plate on each side.

Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Powder Coat
US28/628 – Satin Anodized Aluminum
US32D/630 – Satin Stainless Steel
Material .050 Aluminum, Brass, Bronze, Stainless Steel
Fasteners #6 X 5/8 Flat Head Tek Screws
Options Cutouts - See "Templates" Section for Ordering Info.
UL Stamp
Mortised Application - Specify "Mortise" After Part Number
