#10 — Cast Pull

Cut Sheet: Print | Email | Download

Part# 10

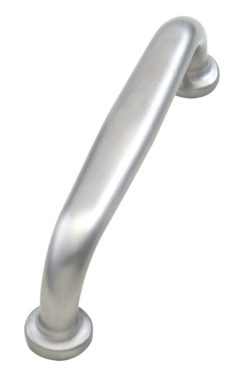

Cast Pull

Specify door thickness if other than 1-3/4"

Centers 5-1/2"
Overall 6-1/2"
Clearance 1-1/2"
Projection 2"
Base 1"
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
Standard Fasteners Type 1 - 1/4-20 X 2-1/4" Thru Bolt & Finish Washer (1-3/4" door)
ANSI J401
