#14 — Cast Pull

Cut Sheet: Print | Email | Download

Part# 14

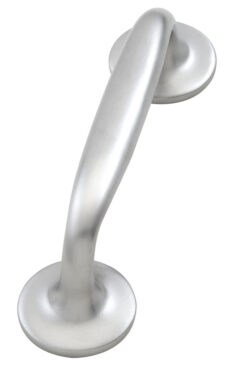

Cast Pull

Specify door thickness if other than 1-3/4"

Centers 5-1/2"
Overall 7-1/2"
Clearance 1-1/2"
Projection 2-1/4"
Base 2"
FInishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
Flat Black Powder Coat
Dark Bronze Powder Coat
Standard Fasteners Type 1 -1/4-20 X 2-1/4" Thru Bolt & Finish Washer (1-3/4" door)
ANSI J401
