#89-8 — Combination Push/Pull

Cut Sheet: Print | Email | Download

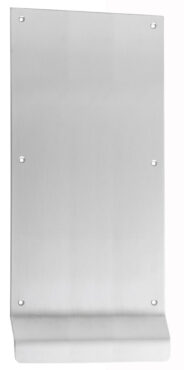

Part# 89-8

Combination Push/Pull

Projection 1"
Base .125" Thick
Material Size 8 × 15-3/4"
Fasteners (6) #6 × 5/8" Sheet Metal Screws
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
Options Security Fastener #6 × 5/8" Sheet Metal or Machine Screw
Thumb Turn Cut Out - 3/8" dia. - TT
Cut for Cylinder - 1-1/4" dia. - CC
Cut for Rose - 2-1/8" dia - CFR
ANSI J303
