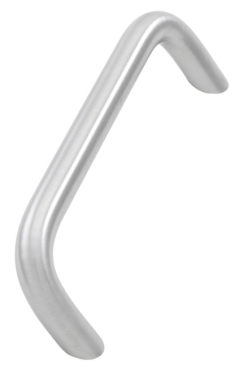

#36C — Offset Pull 60º

Cut Sheet: Print | Email | Download

Part# 36C

Offset Pull 60º

Specify door thickness if other than 1-3/4"

Centers 10"
Overall 11"
Clearance 1-1/8"
Projection 2-1/8"
Offset 2"
Base 1" Oval
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
Material Size 1" Round
Standard Fasteners Type 1MD -5/16-18 X 2-1/2 Thru Bolt & Finish Washer (1-3/4" door)
Mounting Options Type 5MD Back to Back Mtg on 1-3/4" Door
Type 6MD Concealed Mtg on Metal Door
Type 7MD Concealed Mtg on Wood Door
Type 9MD Decorative Blind Head
ANSI J402
