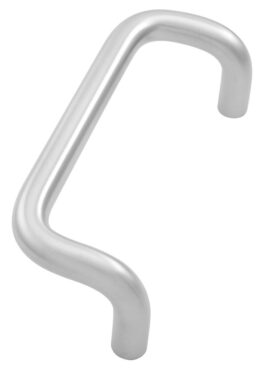

Part# 39D
Offset Pull 90º
Specify door thickness if other than 1-3/4"
| Centers | 12" |
|---|---|
| Overall | 13" |
| Clearance | 1-3/4" |
| Projection | 2-3/4" |
| Offset | 4" |
| Finishes |
US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat |
| Material Size | 1" Round |
| Standard Fasteners | Type 1MD – 5/16”-18 X 2-1/2” thru bolt and finish washer (1-3/4” door) |
| Mounting Options |
Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head Type 10MD Back to Back Mtg on Glass Door |
| ANSI | J402 |
