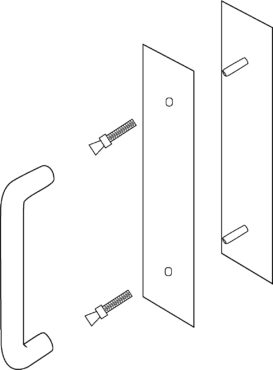

Part# 74L x 5425B

Concealed Mount

Type 12 Mounting With 1/4-20 Lugs for 1-3/4" Doors. Specify door thickness if other than 1-3/4"

Plate Size	4" x 16"
Pull Size	3/4” Dia. x 8” cc
Push Plate	.125 Thick
Pull Plate	.050 Thick
Standard Fastener	1/4-20 x 1-1/4" Conehead
Finishes	US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
