#VP4422 — Round Profile, Top and Bottom Mitered Ends

Cut Sheet: Print | Email | Download

Part# VP4422

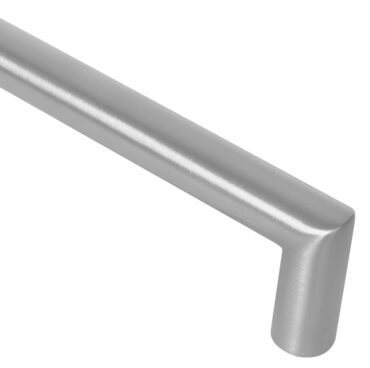

Round Profile, Top and Bottom Mitered Ends

Specify Center to Center Dimension

Size 1-1/2" Ø x 3" Projection
Material Stainless Steel
Finishes US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
Fasteners • TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer
• TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors
• TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door; for Metal doors
• TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1” with Rivnut; for Metal Doors
• TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw; for Wood doors
• TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap; Specify Wood, Metal or Glass door and thickness
• TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness
Options Leather Wrapped
Powder Coat
Split Finish

Product Template
