#VP6351 — Wood Center - Offset Post Mount - Round Ends

Cut Sheet: Print | Email | Download

Part# VP6351

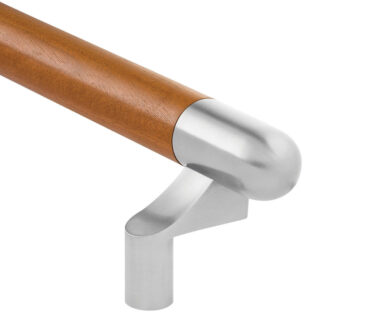

Wood Center - Offset Post Mount - Round Ends

Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP6240-IP).

Size 1-1/4" Diameter x 3-3/8" Projection
Material Wood Dowel
Fasteners • TYPE 1HD - Single Mount - Thru Bolt - 3/8-24 × 2-1/2" T.B. & Finish Washer; standard with offset brackets
• TYPE 5HD - Back to Back Mount - 3/8-24 x 2-1/2" cone head; standard with offset brackets; for Wood or Metal doors; specify door thickness
• TYPE 6HD - Single Mount - Concealed - 3/8-24 tapped thread in door; for Metal doors (not recommended for use with offset brackets)
• TYPE 6HDR - Single Mount - Concealed - 1/4-20 × 1"; used with 1/4-20 rivnuts; for Metal doors (not recommended for use with offset brackets)
• TYPE 9HD - Single Mount - Decorative Blind Head - 3/8-24 stud with cap; standard with offset brackets; specify Wood, Metal or Glass Door
• TYPE 10HD - Back to Back Mount - 3/8-24 × 1-1/2" cone head; standard with offset brackets; for Glass doors; specify door thickness
Finishes Standard - Top and Bottom Ends and Stand Offs - US32D/630 / Natural Wood Center
Option - Top and Bottom Ends and Stand Offs - US32/629 / Natural Wood Center
Options Powder Coat
Available Wood Species • Red Oak
• White Oak
• Soft Maple
• Hard Maple
• Cherry
• African Mahogany
• Honduras Mahogany
• Hickory
• Walnut
• Pine
• Poplar
• Spanish Cedar
• White Ash

Product Template
