#VP8600 — Rectangular Bar - 1" Diameter Straight Post Mount

Cut Sheet: Print | Email | Download

Part# VP8600

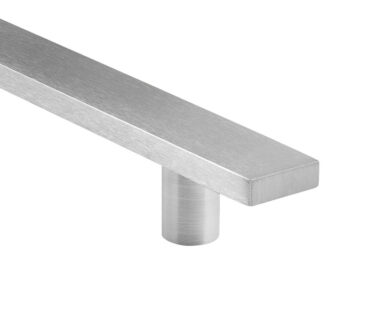

Rectangular Bar - 1" Diameter Straight Post Mount

Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP8600-IP).

Size 1/2" × 1-1/2" × 2" Projection
Material Brass
Bronze
Stainless Steel
Fasteners • TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer
• TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors
• TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door; for Metal doors
• TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1” with Rivnut; for Metal Doors
• TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw; for Wood doors
• TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap; Specify Wood, Metal or Glass door and thickness
• TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10B/613 – Dark Bronze Oxidized
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat

Product Template
