#VP8640 — Square Bar Narrow Profile - Square Straight Post Mount

Cut Sheet: Print | Email | Download

Part# VP8640

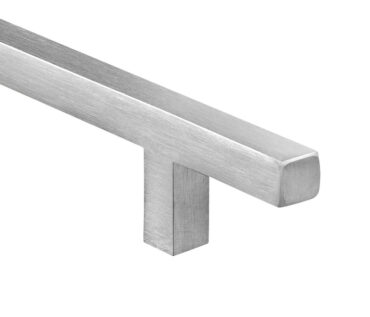

Square Bar Narrow Profile - Square Straight Post Mount

Specify Center to Center and Overall Dimension. Intermediate Post recommended for spans over 80". Add suffix "IP" to part number (Example: VP8640-IP).

Size 3/4" × 3/4" × 2-1/4" Projection
Material Stainless Steel
Fasteners • TYPE 1 - Single Mount - Thru Bolt – ¼-20 × 2-1/2" T.B. & Finish Washer
• TYPE 5 - Back to Back Mount – ¼-20 x 2-3/8" Conehead; for Wood or Metal doors
• TYPE 6 - Single Mount - Concealed – ¼-20 Tapped Thread in Door; for Metal doors
• TYPE 7 - Single Mount - Concealed - #8 × 1-1/2" Wood Screw; for Wood doors
• TYPE 9 - Single Mount - Decorative Blind Head – ¼-20 stud with cap; Specify Wood, Metal or Glass door and thickness
• TYPE 10 - Back to Back Mount – ¼-20 × 1-1/4" Conehead with 5/8” Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness
Finishes US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat

Product Template
