Part# 538

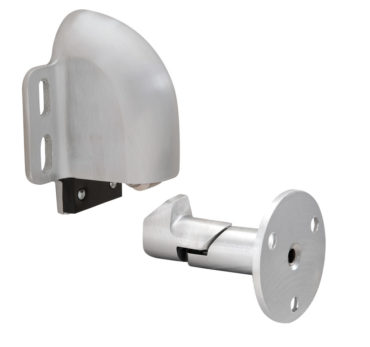

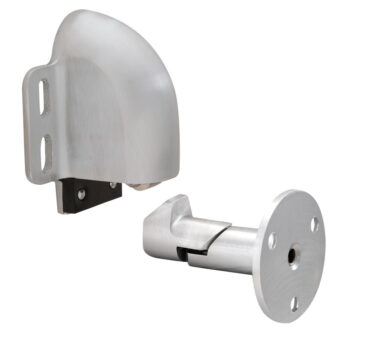

Automatic Wall Type Holder and Stop
Wall mounted strike has a pivoting head to adjust to different angles.
Size |
3-11/16" × 3" Base 1-15/16" Projection 3-1/4" Projection Strike |
---|---|
Material | Cast Brass |
Fasteners |
(4) #12 × 1" MS (3) #14 × 1-1/4" SMS (3) 1/4-20 × 3/4" MS With Lead Anchors (4) #12 × 1" SMS |
Finishes | US26D/626 – Satin Chrome Plated |
ANSI | L01291 |
