Part# 534

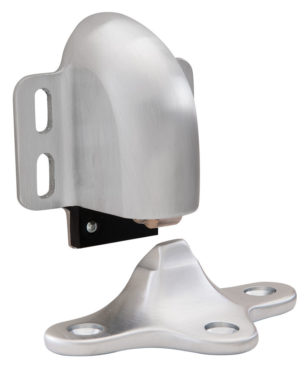

Automatic Wall Type Holder and Stop
Commercial grade automatic door holder with floor mounted strike.
Size |
3-11/16" × 3" Base 1-15/16" Projection 1-3/16" High Strike |
---|---|
Material | Cast Brass |
Standard Fasteners |
(3) #14 × 1-1/4" SMS (3) 1/4-20 × 3/4" MS With Lead Anchors (4) #12 × 1" SMS (4) #12 × 1" MS |
Finishes |
US10/612 – Satin Bronze US26D/626 – Satin Chrome Plated Flat Black Powder Coat |
ANSI | L01301 |
