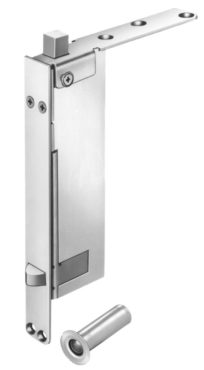

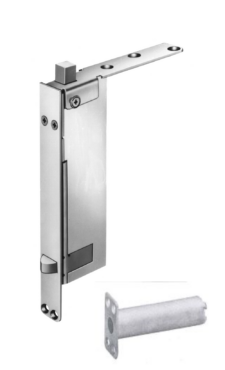

#7949 — Automatic Flush Bolt with Bottom Fire Bolt - Wood Door

Cut Sheet: Print | Email | Download

Part# 7949

Automatic Flush Bolt with Bottom Fire Bolt - Wood Door

20 Minute Fire Rating - Wood Doors

Size Top Bolt: 1" × 8-1/2"
Bottom Fire Bolt: 13/16" Diameter
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Material Brass or Stainless Steel
Features Bottom Fire Bolt eliminates the bottom automatic flush bolt and dust proof strike
BFB projects a bolt when subjected to 230 degrees F - locking the leaves together
UL listed
Single Non-Handed Automatic Top Flush Bolt for Metal Door with Bottom Fire Bolt
Fasteners (3) #10 × 1 FH WS
(8) #8 × 3/4 FH Combo Screws
(2) Plastic Anchors

Product Template
