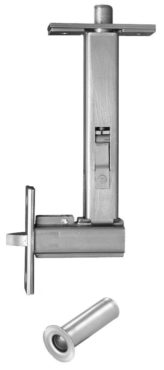

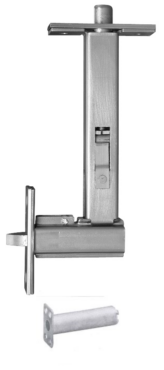

#7969 — Automatic Flush Bolt with Bottom Fire Bolt - Wood Door - Two Piece Design

Cut Sheet: Print | Email | Download

Part# 7969

Automatic Flush Bolt with Bottom Fire Bolt - Wood Door - Two Piece Design

20 Minute Fire Rating - Wood Doors

Size Top Bolt: 1-1/8" × 2-1/4" Face Plate
Bottom Fire Bolt: 13/16" Diameter
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Material Brass or Stainless Steel
Features UL listed
BFB projects a bolt when subjected to 230 degrees F - locking the leaves together.
Fire Rated 20 Minutes.
Single Non-Handed Automatic Top Flush Bolt for Metal Door with Bottom Fire Bolt.
Bottom Fire Bolt eliminates the bottom automatic flush bolt and dust proof strike.
Fasteners (4) #8 × 1 FH SMS
(4) #8 × 3/4 FH Combo Screws
(2) Plastic Anchors

Product Template
