#78BFB — Bottom Fire Bolt - Metal Door

Cut Sheet: Print | Email | Download

Part# 78BFB

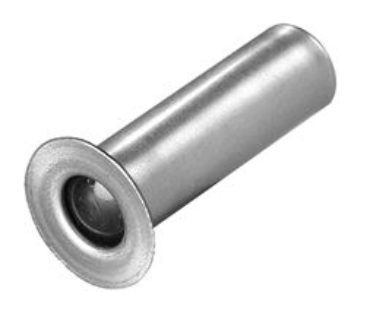

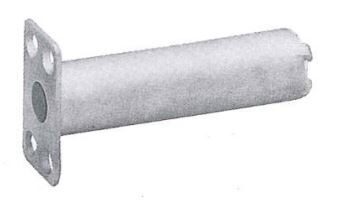

Bottom Fire Bolt - Metal Door

Size 13/16" × 1-9/16"
Finishes US32D/630 – Satin Stainless Steel
Material Stainless Steel
Features Bottom Fire Bolt eliminates the bottom automatic flush bolt and dust proof strike.
BFB projects a bolt when subjected to 230 degrees F - locking the leaves together.
Installed horizontally in inactive door with mating hole in edge of active door.

Product Template
