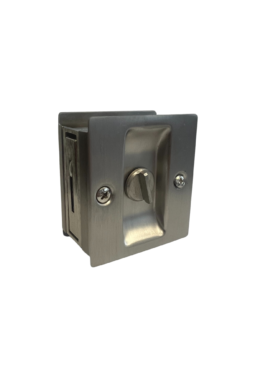

Part# 618

Locking Pocket Door Latch

For 1-3/8" To 1-3/4" Thick Door

Size	2-3/4" Tall x 2-1/2" Deep
Mortise Dimension	2-5/16" Tall x 1-7/8" Deep
Material	Brass / Aluminum
Fasteners	2 - 6-32 x 5/8" 4 - #6 x 5/8" 2 - #6 x 1"
Finishes	US10B/613 – Dark Bronze Oxidized US15/619 – Satin Nickel US26D/626 – Satin Chrome Plated Flat Black Powder Coat
