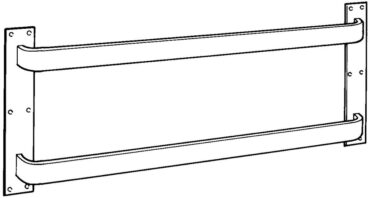

Part# 415S

Push Unit

Specify push bar center to center dimension Consists of (2) 414 & (2) Base Plates

Clearance	1-5/8"
Projection	2''
Base	2" × 12" × 1/8"
Bar Spacing	8"
Fasteners	#8 × 1 SMS or MS
Material Size	3/8" × 1-1/2"
Material	Aluminum Brass Bronze Stainless Steel
Finishes	US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
ANSI	J504
