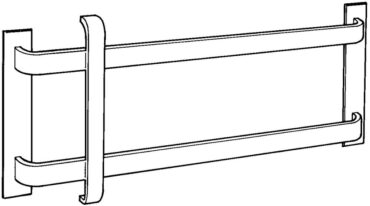

#415P — Pull Unit

Cut Sheet: Print | Email | Download

Part# 415P

Pull Unit

Specify push bar center to center dimension Consists of (1) 23, (2) 414 & (2) Base Plates

Clearance 1-5/8" UNDER HORIZONTAL BAR
Projection 2-3/8"
Base 2" × 12" × 1/8"
Bar Spacing 8"
Fasteners 1/4-20 X 2-1/4 Thru Bolts and Finish Washers
Material Size 3/8" × 1-1/2"
Material Aluminum
Brass
Bronze
Stainless Steel
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
ANSI J504
