#M422 x M49D — Push Pull Bar Set

Cut Sheet: Print | Email | Download

Part# M422 x M49D

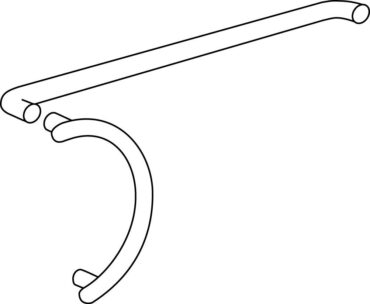

Push Pull Bar Set

Specify push bar center to center dimension

Clearance Push Bar: 1-1/2" Pull: 1-1/2"
Projection Push Bar: 2-3/4" Pull: 2-3/4"
Fasteners Standard: (2) Type 1MD - 5/16-18 × 2-1/2 Thru Bolts and Finish
Washers (1) Type 5MD - Back to Back Mounting
Material Size Push Bar/Pull: 1-1/4" Ø
Pull: 12" ctc C Shaped Offset
Material Aluminum
Brass
Bronze
Stainless Steel
Finishes US3/605 – Bright Brass
US4/606 – Satin Brass
US5/609 – Antique Brass
US10/612 – Satin Bronze
US10B/613 – Dark Bronze Oxidized
US26/625 – Bright Chrome Plated
US26D/626 – Satin Chrome Plated
US28/628 – Satin Anodized Aluminum
US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
ANSI J504
