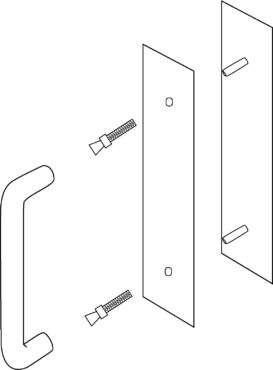

#74L x 5426D — Concealed Mount

Cut Sheet: Print | Email | Download

Part# 74L x 5426D

Concealed Mount

Type 12 Mounting With 1/4-20 Lugs for 1-3/4" Doors. Specify door thickness if other than 1-3/4"

Plate Size 4" x 16"
Pull Size 1” Dia. x 12” cc
Push Plate .125 Thick
Pull Plate .050 Thick
Standard Fastener 1/4-20 x 1-1/4" Conehead
Finishes US32/629 – Bright Stainless Steel
US32D/630 – Satin Stainless Steel
Flat Black Powder Coat
Dark Bronze Powder Coat
